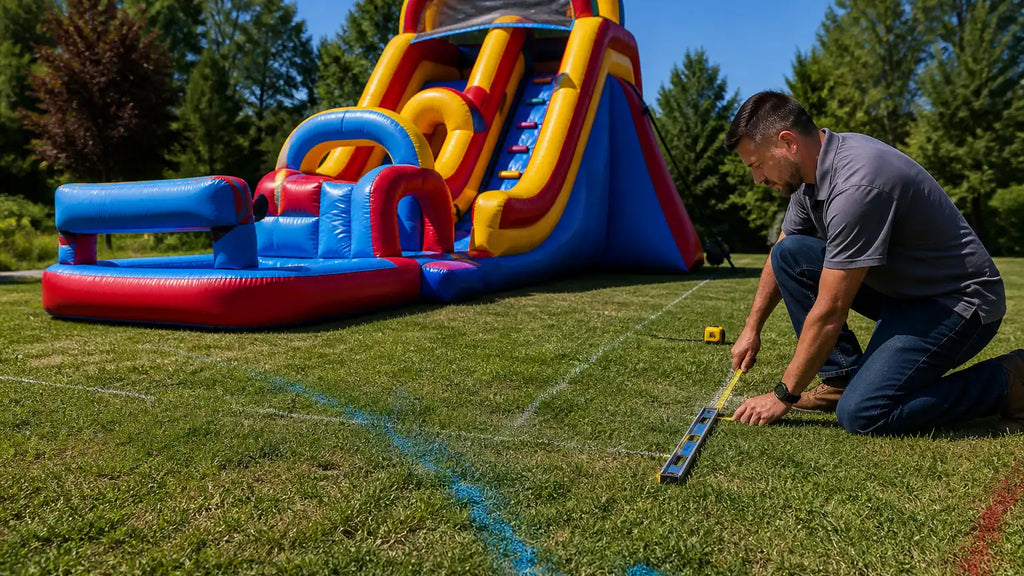

A water combo's footprint isn't one number. Unlike a single-lane slide, a combo packs a slide, a climb structure, and often a splash pool or water play zone into one layout — and buyers who only measure the main structure's length and width routinely come up short once the splash zone, runoff path, and anchor clearance get added in. Here's how to actually size the space.

Base footprint by combo size and configuration

As general planning ranges, not a substitute for the manufacturer's exact spec sheet:

• Compact combos (single slide lane + small climb, 12-15 ft height): roughly 30-35 ft length x 15-18 ft width for the core structure
• Mid-size combos (dual-lane slide + climb + splash pool, 15-20 ft height): roughly 40-50 ft length x 20-25 ft width
• Large multi-activity combos (multiple zones, 20+ ft height): 50+ ft length x 25+ ft width, sometimes requiring an L-shaped or irregular footprint rather than a simple rectangle

These ranges cover the inflated structure only — the sections below add the space around it that buyers most often forget to budget.

Why multi-zone units need zone-by-zone clearance

A single-lane water slide has one landing zone to clear. A combo has several: the slide landing/splash pool, the base of the climb structure, and any separate play features built into the unit. Each zone needs its own clear space for riders entering and exiting safely — you can't treat the combo's total footprint as one block and assume clearance is handled. Walk the unit's layout diagram (not just its outer dimensions) before committing a venue, and confirm clearance at every zone transition, not just the perimeter.

Water runoff and drainage — a water-combo-specific requirement

This is the constraint a dry unit simply doesn't have. Water combos generate continuous runoff from the slide and splash zone for the entire rental duration, and that water has to go somewhere. Confirm the venue has adequate drainage or a slight grade away from foot traffic and structures — pooling water around the base isn't just an inconvenience, it's a slip hazard and can undermine ground anchoring over a multi-hour event. Flat, hard-packed grass or asphalt with even minor drainage slope works; low-lying areas that collect standing water don't, regardless of how much open footprint they otherwise offer.

Ground surface and slope considerations

Beyond drainage, water combos need a level surface for the base structure to sit correctly — an uneven or sloped site can cause water to pool unevenly on one side of the unit, adding weight and stress where the structure wasn't designed to carry it. Check the site for level ground across the full footprint, not just at the entry point, before booking. A site that looks flat from the entrance can still have enough slope across a 40+ ft footprint to cause real drainage problems.

Anchoring across multiple zones

A multi-zone combo needs anchor points distributed across its full footprint, not just at the corners of a simple rectangle — the climb structure and any raised platform sections carry their own wind-load risk and need dedicated anchoring per ASTM F2374 guidance, the same standard covered in our anchoring and wind safety guide. Confirm the unit's anchor diagram before setup — skipping anchor points at secondary zones because "the main structure is staked" is a common setup shortcut that creates real wind risk on the taller climb or slide sections.

Quick sizing checklist before you book a venue

• Get the exact footprint from the unit's spec sheet, including any irregular (non-rectangular) shape
• Confirm clear space at every activity zone, not just the outer perimeter
• Check drainage and grade — avoid low-lying areas that collect standing water
• Verify ground is level across the full footprint, not just at the entrance
• Confirm the anchor diagram covers every zone, including climb and platform sections
• For multi-lane or L-shaped configurations, re-measure the actual venue against the specific layout, not a generic rectangle estimate

Indoor and covered-venue deployment

Most water combos are outdoor-only by design — the drainage and water-handling requirements above generally rule out indoor venues unless the space has dedicated drainage infrastructure built for water-based equipment, which is rare outside of purpose-built water park facilities. If you're planning an indoor or covered event, a dry combo or dry slide is almost always the more practical choice; don't assume a water combo can simply be moved indoors the way a dry unit sometimes can.

Bottom line

Water combo footprint planning is a multi-zone measuring exercise, not a single length-times-width calculation — drainage, ground level, and per-zone anchoring all factor in alongside the base structure's dimensions. For the feature and use-case comparison between combos and standalone slides, see our water combo vs. water slide guide, and for unit options built for high-utilization fleets, our multi-activity water combo guide.
